SEW8F

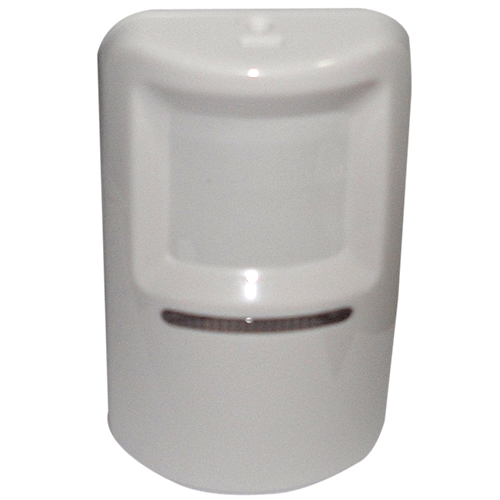

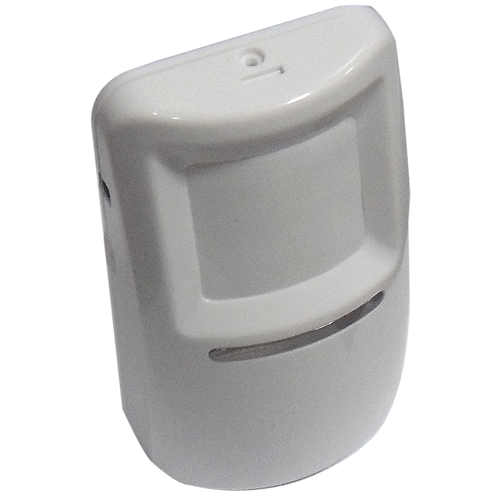

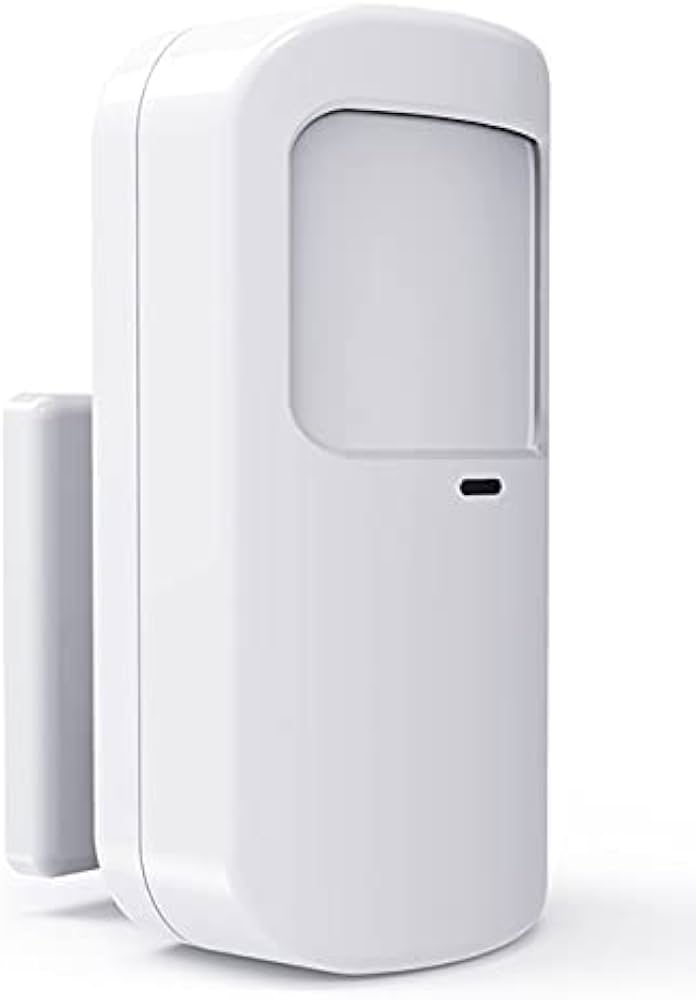

Wireless PIR Sensor
- Wireless PIR sensor with Wide Angle Detection for Burglar Alarm System
- Area of Detection: 115?, Distance: 8-10m
- Installation: Wall Mounted at 1.8-2.4m height
- Alarm Output: NC/NO
- Made up of high quality fire resistant ABS plastic
- Power: Batterr operated with 3*1.5V AAA batteries or 12V DC power supply
- Sensitivity can be adjusted according to the environment
- Transmission distance: 150m (open area) with internal antenna
- Sensor: Dual Pyroelectric Infrared Sensor
- Built-in invisible antenna with wireless frequency-433 MHz
Specification for SEW8F |
|
| Model | YH-807F wireless PIR detector |
| alarm output | NC/NO |
| sensor | low noise ,high sensitivity dual beams infrared |
| dimension | 110*40*70mm |
| anti-light interference | >8000LUX |
| anti-EMI | >20V/M(20MHz-1000MHz) |
| working environment | -10°C-50°C |
| working current | 8mA~25mA |
| working voltage | 4.5V battery (1.5V*3) |
| installation | 1.8~2.4m(wall ore corner mounted ) |
| wireless frequency | 433MHz |
| detecting angle | 115° |
| detecting distance | 8~10m |
| detectig method | PIR |
| Weight | 100g |
