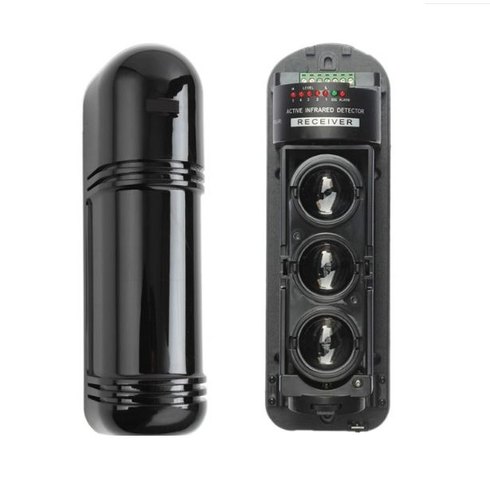

SE250

Active Triple Infrared Beam Sensor


  • Active Triple Infrared Beam Sensor for perimeter protection

  • When an intruder passed through the invisble beam, signal is triggered to the control unit(not included)

  • Alert Distance Max: Indoor-750m, Outdoor-250m

  • Infrared transmitting frequency: 1.92KHz

  • Built in AGC circuit wth high Anti-EMI/RFI capabilities

  • Fully sealed design, rainproof and dustproof

  • Anti-glare of up to 50,000 Lux, automatic adjustment built-in strong light filtering system

  • Adjustable Angle: Horizontal -90°; Vertical -10°


Specification for SE250
Model SE250
Case  material PC
Vertical  angle  adjustment ± 10°
Horizontal  angle  adjustment 180° ± 90°
Housing material PC
Working environment -25° — 65° C;Humidity:5% — 95% RH
Working current 60mA — 70mA
Working voltage 12-24VDC
Ganged alarm Yes
Tamper-proof output NC, 24V/0.5mA
Contact capacity AV/DC, 30V/0.3mA
Alarm output N C/N O
Response time 35 — 700 ms
Beam amount 3
Indoor alert distance max 750m
Outdoor alert distance max 250m
Dimensions 27*10*9.5cm
