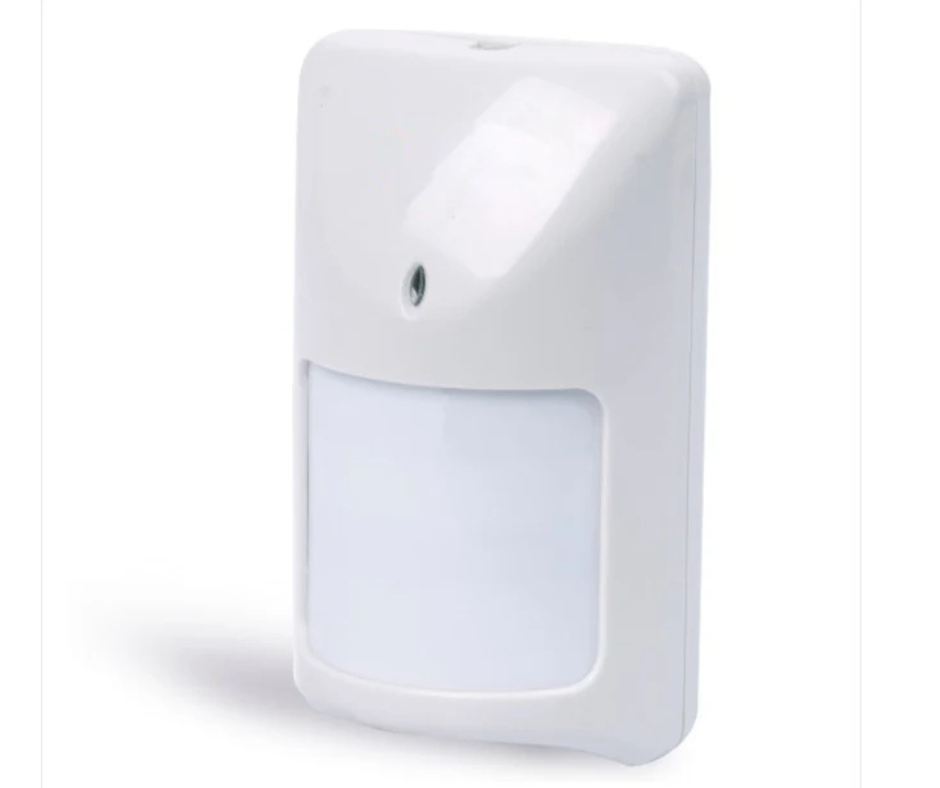

SE804E
PIR SENSOR 12V ECONOMY
- Operating Voltage: DC 9V to 16V
- Current Consumption: 18mA (at DC12V)
- Detecting Distance: 12 meters
- Detecting Angle: 110°
- Self-Testing Time: Approximately 60 seconds
- Working / Operating Temperature: -10°C to +50°C
- Alarm Indicator: Red LED
- Alarm Output: N.C. (Normally Closed) or N.O. (Normally Open), DC28V, 100mA
- Tamper Output: N.C. (Normally Closed), DC28V, 100mA
- Range of Coverage: 11 distance, 8 middle, 5 vicinities
- Sensor Type: Dual element infrared sensor
- Environment Humidity: 95% RH (no congelation/condensation)
- Anti-RF Interference: 10MHz to 1GHz, 20V/m
- Installation Mode: Wall-mounted or corner-hung
- Installation Height: 1.7m to 2.5m (2.2m is recommended/proposed)
- Outline Size: 52.5L × 38.5W × 89H mm
