SE420
Active 4 Infrared Beam Sensor 20m

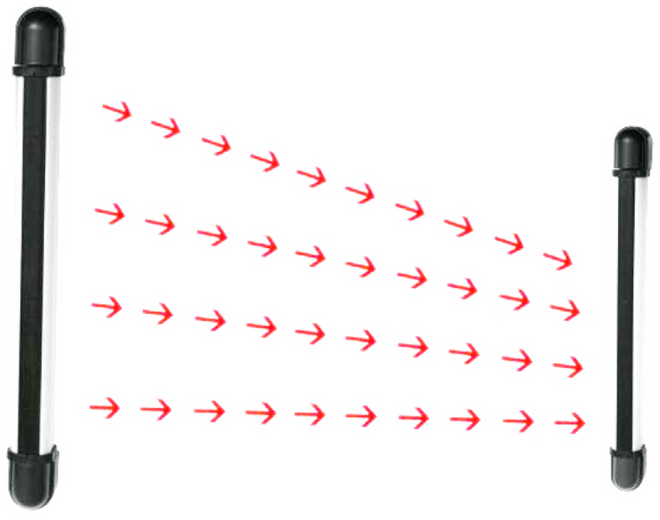

- Active 4 Infrared Beam Sensor Guardrail for perimeter protection

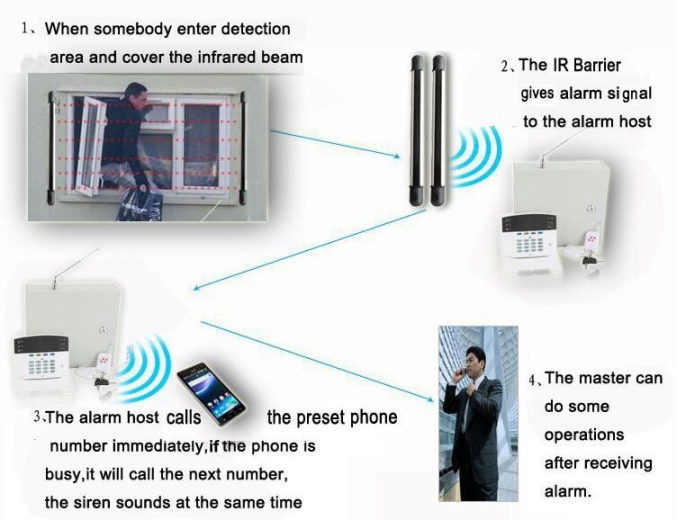

- When an intruder passed through the invisble beam, signal is triggered to the control unit(not included)
- No. of Beams: 3
- Alert Distance Max: Indoor-60m, Outdoor-20m
- Infrared transmitting frequency: 1.92KHz
- Built in AGC circuit wth high Anti-EMI/RFI capabilities
- Works on Double-beam principle leading to low rate of false alarms in case of pets
- Fully sealed design, rainproof and dustproof
- Anti-glare of up to 50,000 Lux, automatic adjustment built-in strong light filtering system
- Adjustable Angle:180? Rotary
- The rail shell is made up of high quality aluminium alloy for sturdy outdoor operation
Specificastion for SE420 |
|
| Model | SE420 |
| Trigger method | Rupture of two adjacent beams |
| Alarm indication | Buzzer buzzer |
| Tamper output | NC |
| Contact capacity | 0.5A 125 V AC, 1A 24 V DC |
| Alarm output | NC / no |
| Response time | < 40ms |
| Work current | < 50th |
| Operating voltage | 10.5-15 V DC |
| Application | Factory, school, villa, hospital, store |
| Inside warning distance | 60 m |
| Outdoor warning distance | 20 m |
| Product length | 70 cm |
| Number of beams | 4 |
| Beam adjustment | 180 degrees |
