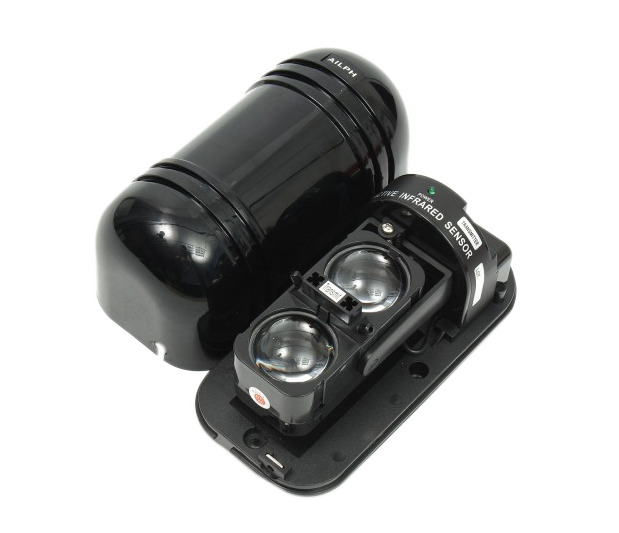

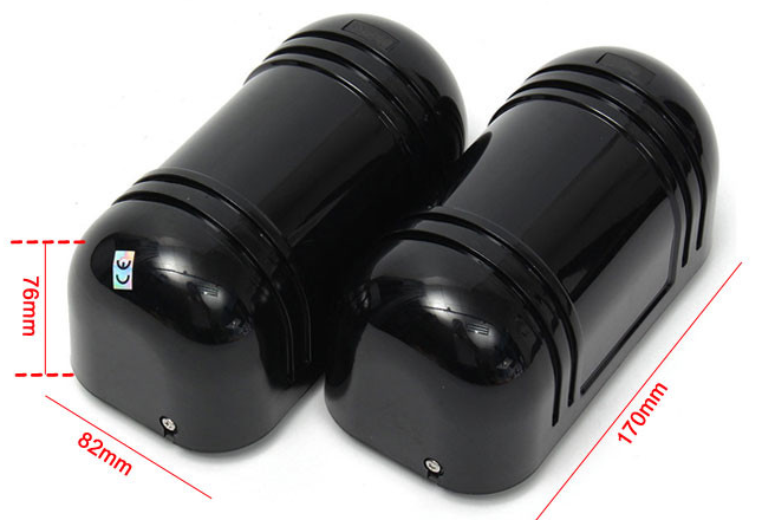

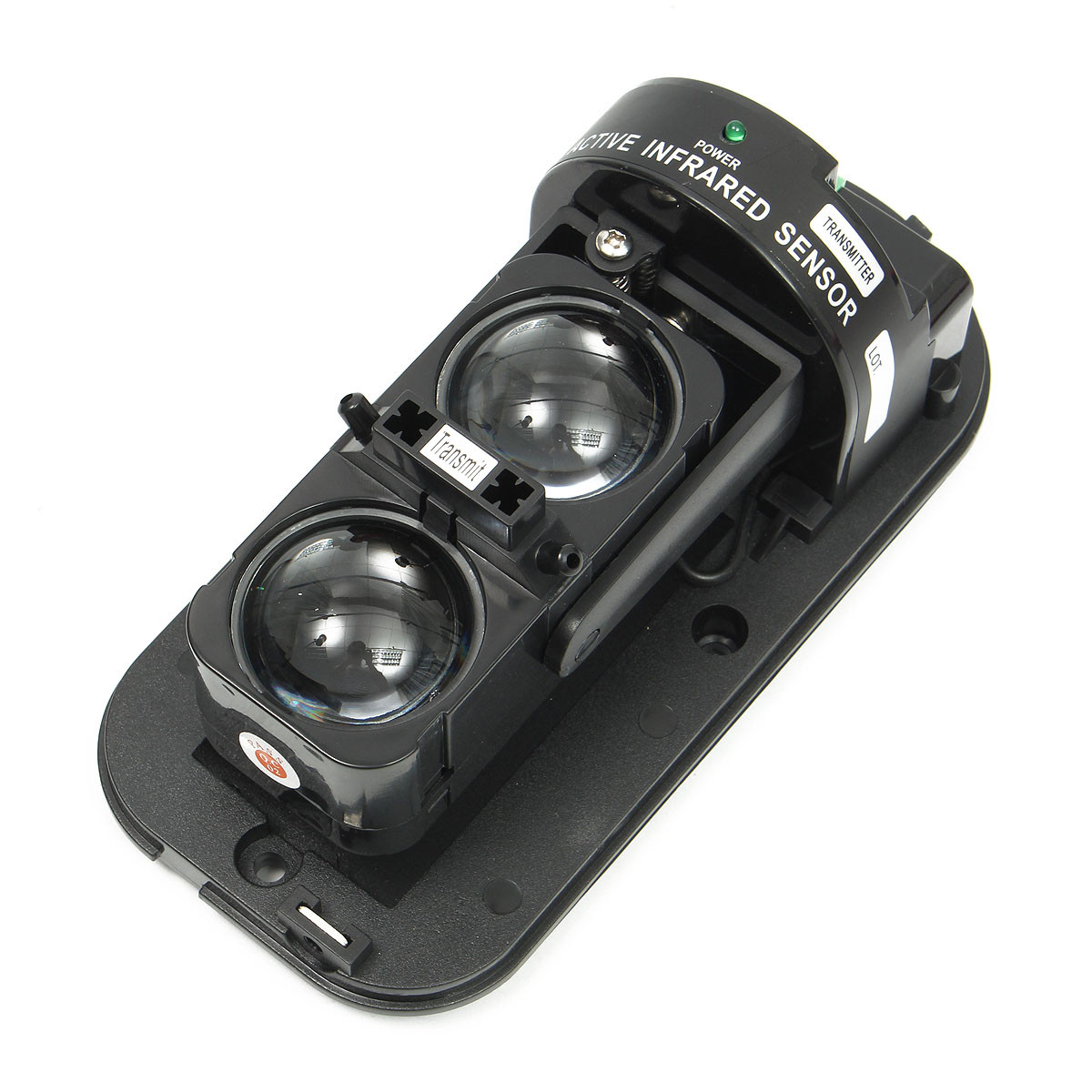

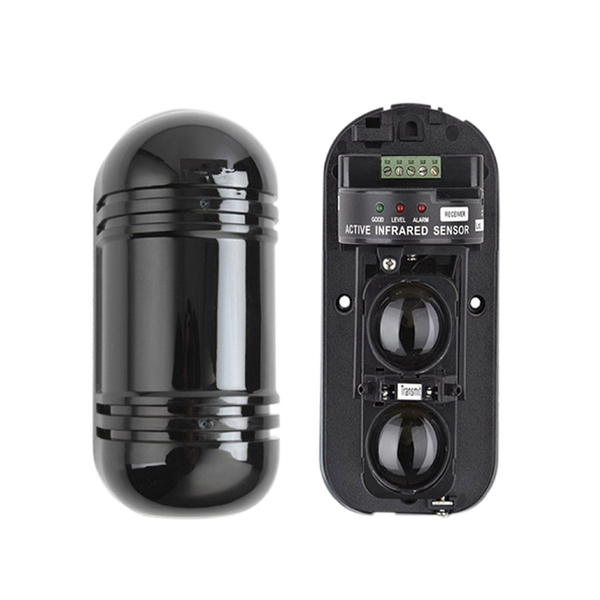

SE260

Active Dual Infrared Beam Sensor


  • Active Dual Infrared Beam Sensor for perimeter protection

  • When an intruder passed through the invisble beam, signal is triggered to the control unit(not included)

  • No. of Beams:2

  • Alert Distance Max: Indoor-300m, Outdoor-100m

  • Infrared transmitting frequency: 1.92KHz

  • Built in AGC circuit wth high Anti-EMI/RFI capabilities

  • Fully sealed design, rainproof and dustproof

  • Anti-glare of up to 50,000 Lux, automatic adjustment built-in strong light filtering system


specification for SE260
Model ABT
Housing material PC
Working environment -25? — 65?? Humidity:5% — 95% RH
Working current 40mA — 65mA

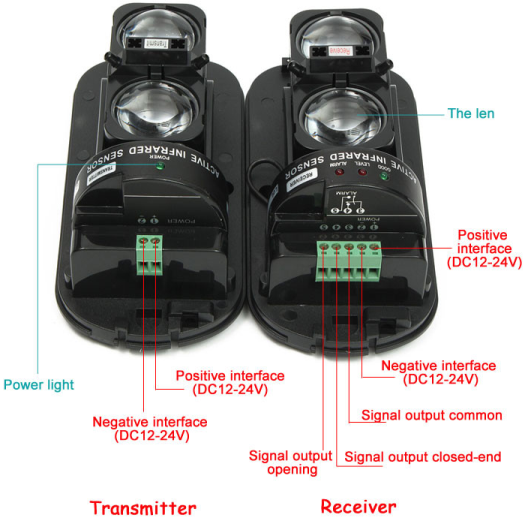

Working voltage 12-24VDC
Ganged alarm Yes
Tamper-proof output NC, 24V/0.5mA
Contact capacity AV/DC, 30V/0.3mA
Alarm output N C/N O
Response time 50 — 700 ms
Beam amount 2
Indoor alert distance max 300m
Outdoor alert distance max 100m
Package 20pcs/carton, 49.5*45*37cm
