AB007B

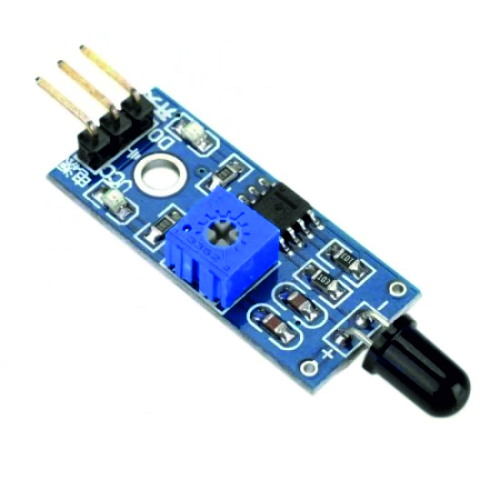

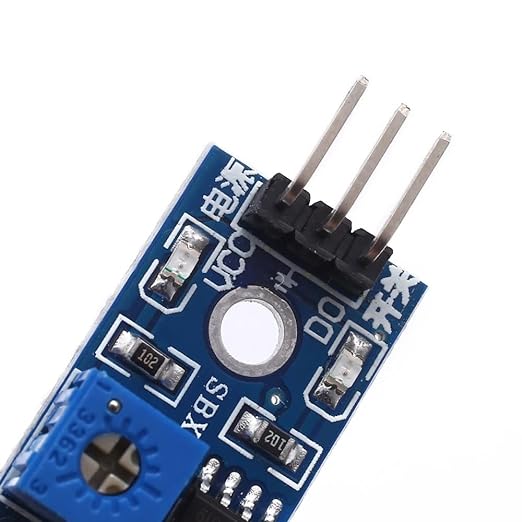

3PIN FLAME SENSOR MODULE BLUE`


  • High Photo Sensitivity

  • Fast Response Time

  • Sensitivity adjustable

  • Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.

  • Detection range: up to 100 cm.

  • Adjustable detection range.

  • Detection angle about 60 degrees, it is sensitive to the flame spectrum.

  • Comparator chip LM393 makes module readings stable.

  • Operating voltage 3.3V-5V.

  • Digital and Analog Output.

  • Power indicator and digital switch output indicator.
