SVALVE90

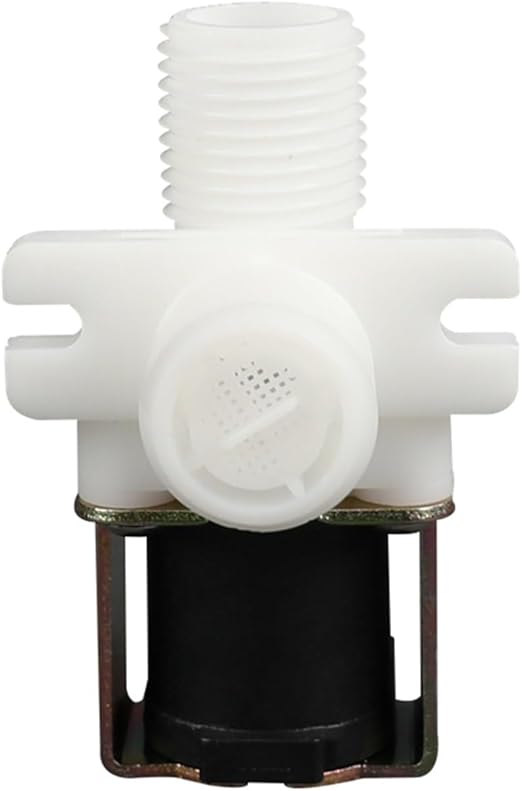

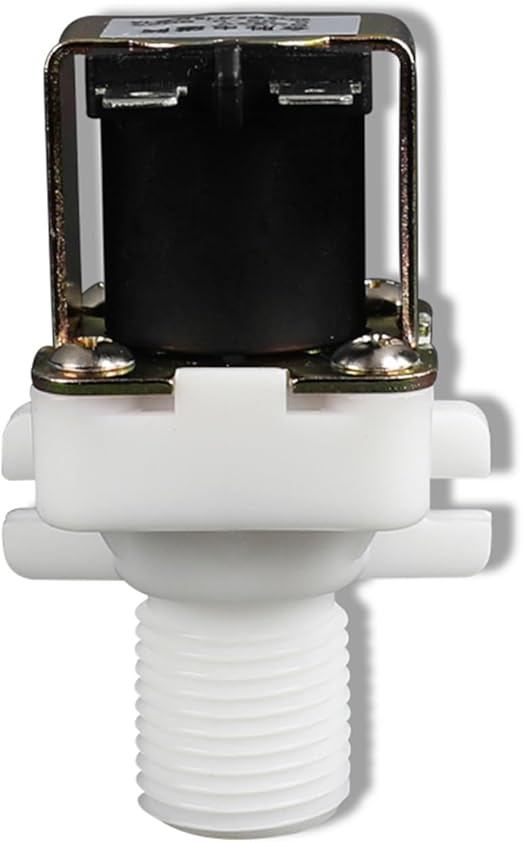

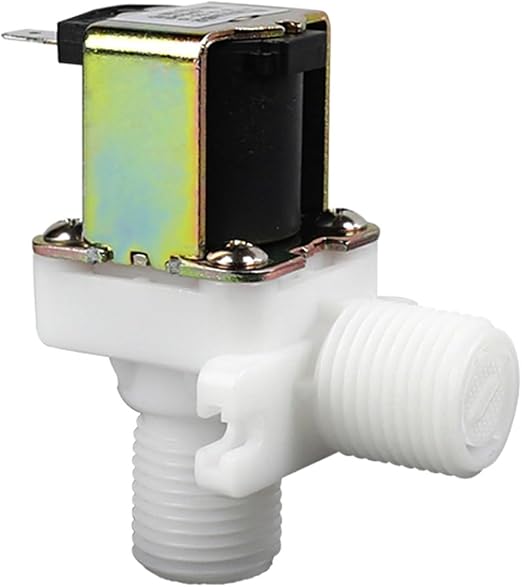

12V DC WATER AIR INLET FLOW SWITCH 1/2" RIGHTANGLE

Plastic Water Solenoid Valve used in automatic control system: solar automatic water supply, infrared induction ware, water dispenser, water control machine, automatic water dispenser, water heater, campus card equipment, etc.

It will become hot when it works because there are so many coils inside. It’s normal and safe phenomenon.

Inlet hole has Filter,Flow Direction: Unidirectional ; Operation Mode: N/C(Normally Closed).

Work form: normally closed/normally open

Mode of action: type

Operating voltage: DC12V, DC24V, AC220V

Ambient temperature: 0-50

Average temperature: 0-100

Working pressure: Having pressure 0.02-0.8Mpa

Water pressure resistance: 1.6Mpa

Power connection: standard socket spring 6.3

Medium: purified water and tap water. (Not suitable for acid-base, thick, viscous and other non-liquid liquids).
