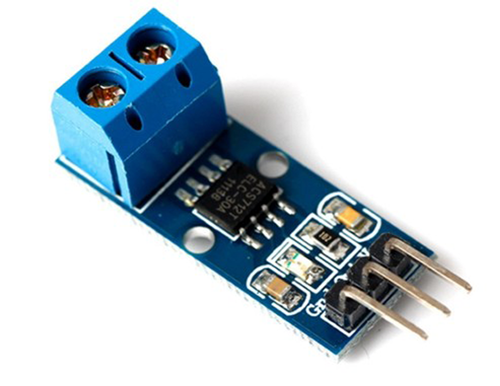

ACS712B

Range Current Sensor 20A


  • Low-noise analog signal path

  • Device bandwidth is set via the new FILTER pin

  • 5 µs output rise time in response to step input current

  • Small footprint, low-profile SOIC8 package

  • 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8

  • Supply Voltage: 4.5V~5.5V DC

  • Measure Current Range: 20A

  • Sensitivity: 100mV/A
