AA118

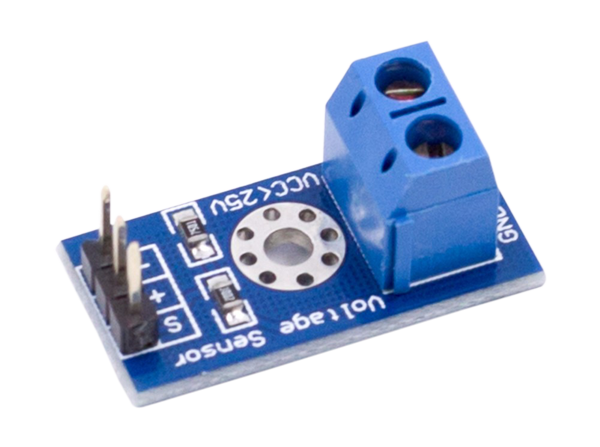

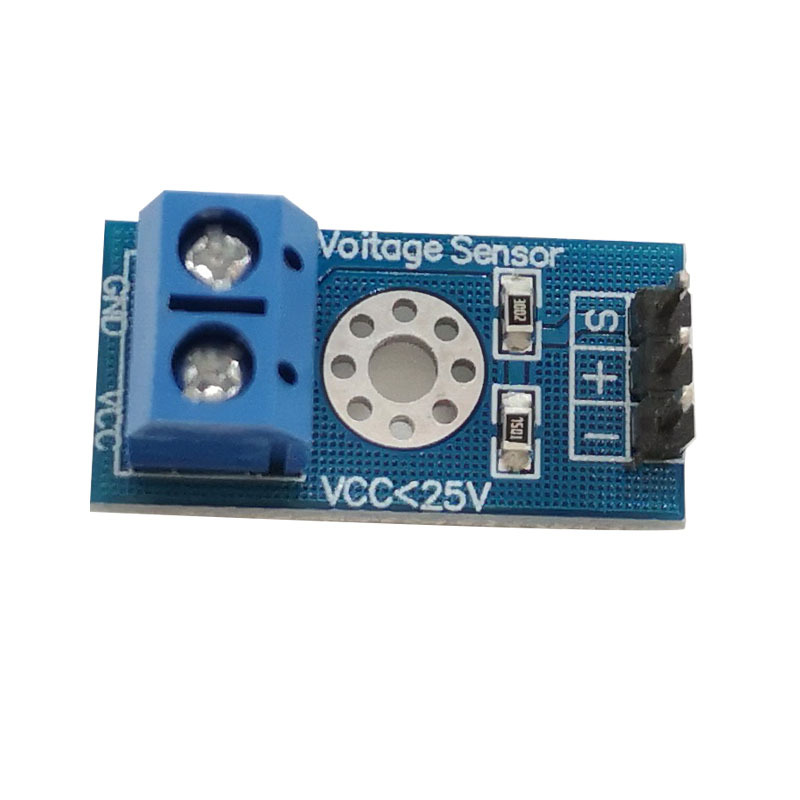

Voltage Sensor Detection Module

Voltage input range : DC 0-25 V

Voltage detection range : DC0.02445V – 25V

Voltage analog resolution : 0.00489 V

Output Interface : “+ ” connected 5/3.3V, “-” connected GND, “s” connected Arduino AD pins

DC input interface : red terminal positive with VCC, negative with GND

By 3P connector, connect this module with the expansion of board Arduino, not only makes it easier for you to detect voltage battery, can also use the IICLCD1602 LCD to display voltage.

Size: 25mm×13mm/0.98″×0.51″(approx)

Divider ratio: 5:1

Resistor Tolerance: 1%

Max input voltage: 25V

Resistor Value: 30K/7.5K Ohm
