RP1
Remote Controller Module Single Channel 12V Mini

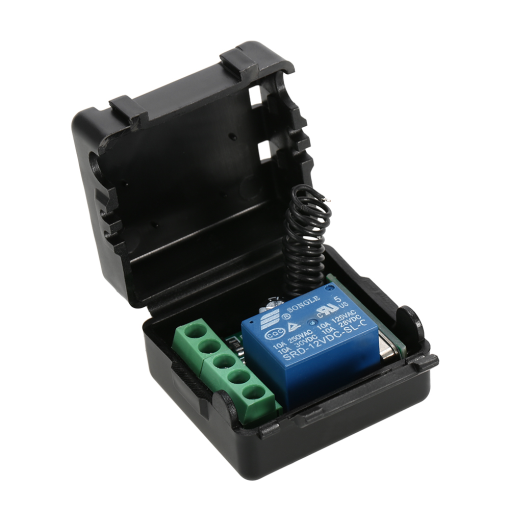

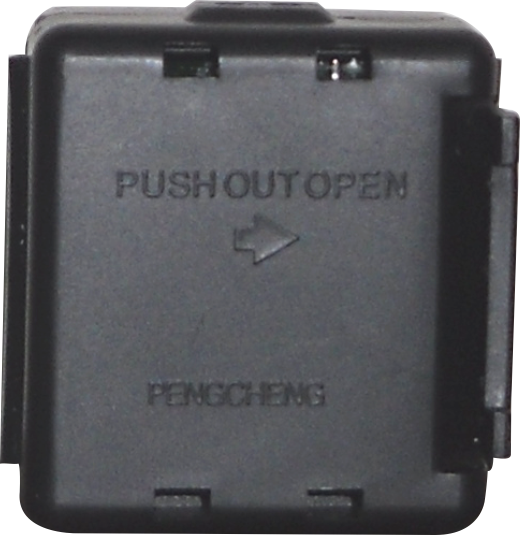

- Remote Controlller Module Single Channel 12V DC with case
- Reciever Sensitivity: -108 dBm
- Working Frequency: 315 MHz
- Standby Current:<5 mA; Working Current

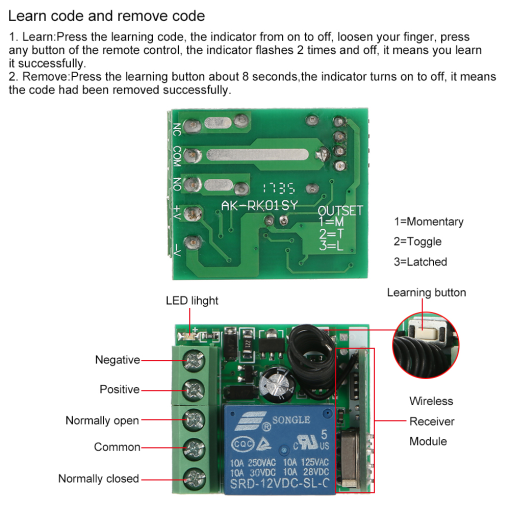

- Pairing with remote through learning code method with Max 19 codes
- Works with any remote control of same frequency, so no danger of loosing the remote
- Max. Load: 10A per Relay with resistive load less than 8 A, inductive load less than 3A
- Working mode: Momentary, 2 button-Lock and Unlock, Single Button Toggle and Swicth on with single button

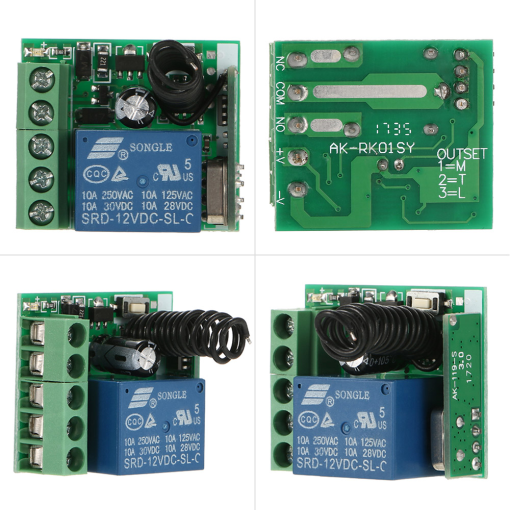

- Super small body that ccupies less space. The size of the receiver board is only approximately 3.5 * 3 * 3 cm.
Specification for RP1 |
|
| Working Voltage | DC 12V |
| Standby Current | <10mA |
| Size(circuit board) | 35x30x17mm / 1.38x1.18x0.67in |
| Working Temperature | -40?~80? / -40?~176? |
| Receiving Sensitivity | >-95dB |
| Working Frequency | 433MHZ |
| Output Currentx | <10A |
| Output Operation Mode | Jog,inter-lock,self-lock (adjustable, default is interlock mode) |
| Output Method | Contact Output (Can control AC & DC) |
