SUL80

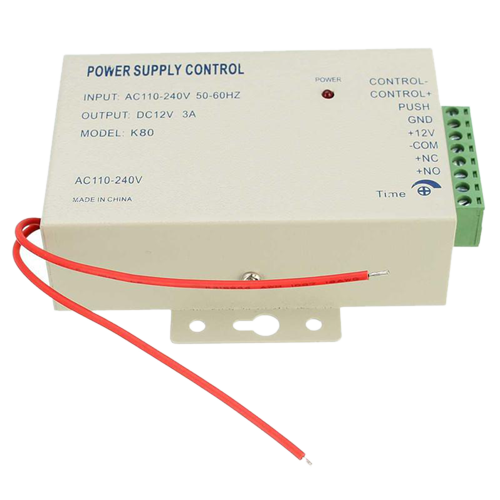

Power Supply Control for Access Control System
- Power Supply Control for Access Control System
- Compatible with EM lock, access controller, exit push button and RFID reader
- INPUT: AC110-240V 50-60Hz; Output: DC 12V 3A
- Protection feature from overload, over voltage and short circuit
- It gives stable voltage output,which provides stable work condition for electronic
- Delay adjustment range: 0-15s
- With NC/NO outputs it can be used for all kinds of electronic locks
Specification for SUL80 |
|
| Input Voltage | 110~240 V AC |
| Outer Steel Case Size | 120mm*95mm*38mm |
| Operating Temperature | -20~+65°C |
| Hold Time | Full Load typically 20ms; |
| Insulation Voltage | Junior/Sub-polar inter-1500V AC, primary/shell between 1500 V AC, sub-polar/shell between 500V AC |
| Ripple and Noise | 1% peak to peak (100m Vpp typical) |
| Output Stability | 0.5% typical |
| Load | 1% typical |
| Output Voltage trim range | +/- 10%~ +/- 15% |
| Output Current | 3A |
| Output Voltage | DC 12v |
| Input Frequency | 50~60 Hz |
| weight | 315g |
