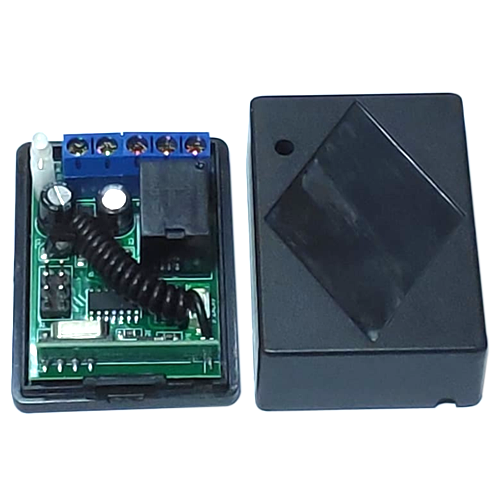

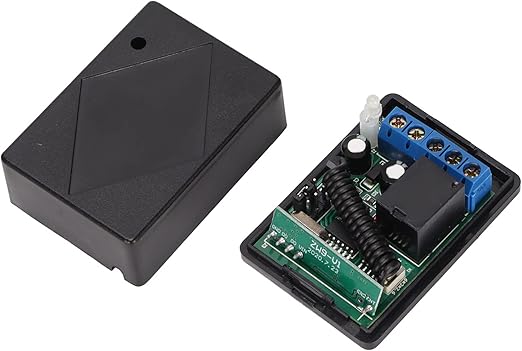

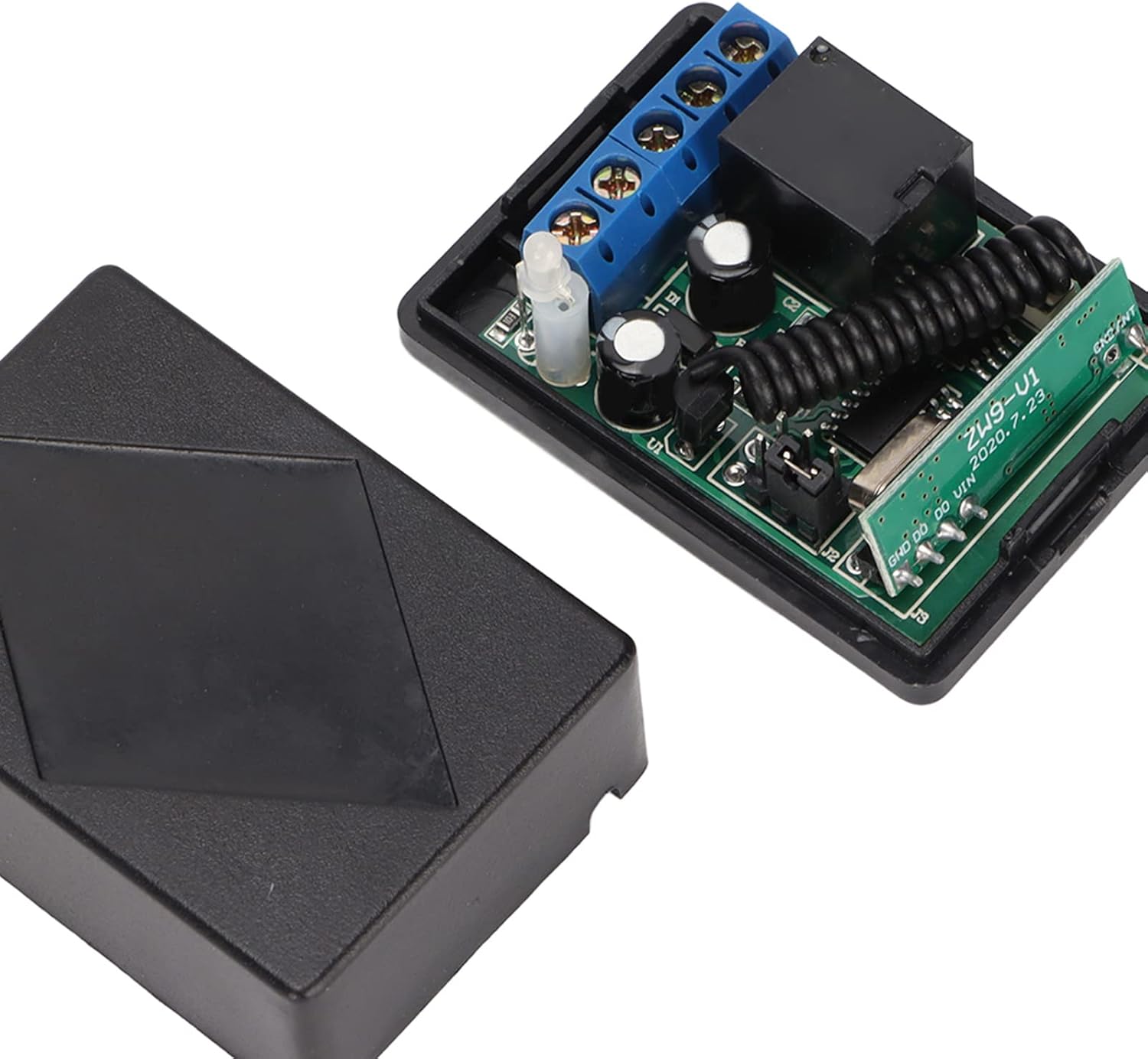

RP26
Remote Controller Module Single Channel 12V
- Remote Controlller Module Single Channel 12V DC
- Reciever Sensitivity: 3-105 dBm
- Working Frequency: 315 MHz
- Pairing with remote through learning code method
- Works with any remote control of same frequency, so no danger of loosing the remote
- Max. Load: 10A per Relay with resistive load less than 8 A, inductive load less than 3A
- Working mode: Momentary, 2 button-Lock and Unlock, Single Button Toggle, Swicth on with single button and auto off with delay
- Demodulation Method: ASK; Output data level: TTL
Specification for RP26 |
|
| Operating voltage | DC12V |
| Size (L*W*H) | 43.7*32*19.2mm |
| Decoder chip | fixed code (PT2272/ PT2262/PT2264/SC2262 ),learning code(EV1527),Rolling code(HCS301) |
| Signal output method | L4:Latch-signal,M4:Momentary-signal,T4:Toggle-signal |
| Modulation | AM |
| Receiving sensitivity | 3-105dBm |
| Operating temperature | -40’C ~ +80’C |
| Frequency deviation | ± 0.2MHz |
| Operating frequency | 315/ 433.92 MHz |
| Weight | 35g (with outer case) |
