RP2

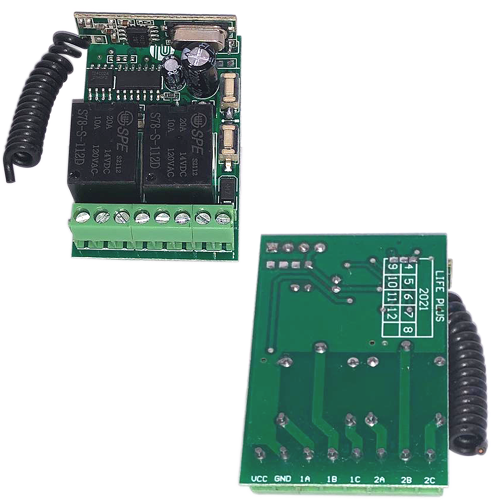

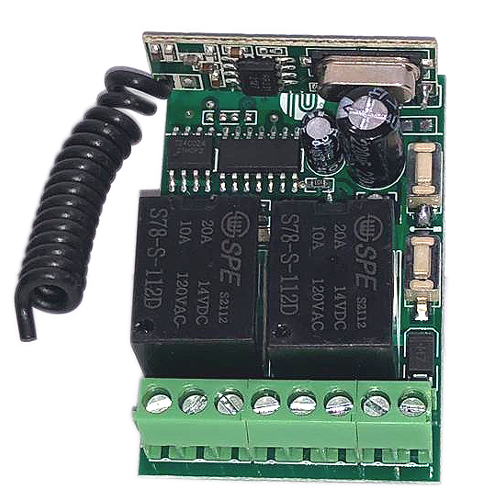

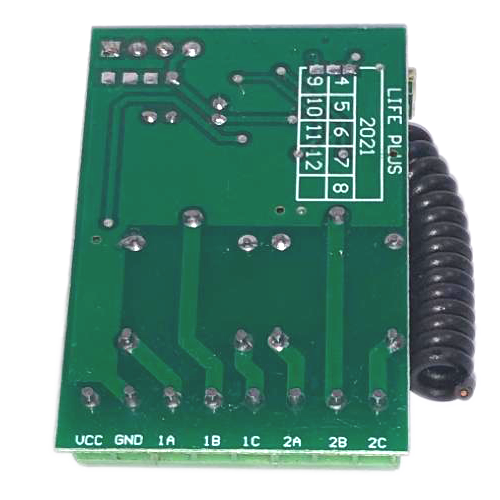

Remote Controller Module 2 Channel 12V
- Remote Controlller Module 2 Channel 12V DC
- Can control 2 devices through a single controller with 12V DC input
- Current:Standby less than 6mA, Working less than 128mA
- Reciever Sensitivity: 3-105 dBm
- Working Frequency: 315 MHz
- Pairing with remote through learning code method
- Works with any remote control of same frequency, so no danger of loosing the remote
- Max. Load: 10A per Relay with resistive load less than 8 A, inductive load less than 3A
- Working mode: Momentary, 2 button-Lock and Unlock and Single Button Toggle
- Every relay can be set up independently
- Demodulation Method: ASK; Output data level: TTL
Specification for RP2 |
|
| Operating voltage | DC12V |
| Operating frequency | 315/ 433.92 MHz |
| Frequency deviation | ± 0.2MHz |
| Operating temperature | -40’C ~ +80’C |
| Receiving sensitivity | 108dBm |
| Modulation | AM |
| Signal output method | L4:Latch-signal,M4:Momentary-signal,T4:Toggle-signal |
| Decoder chip | fixed code (PT2272/ PT2262/PT2264/SC2262 ),learning code(EV1527), |
| Size (L*W*H) | 55*37*22mm |
