L1602G

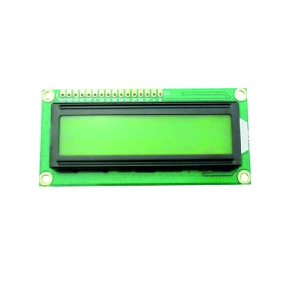

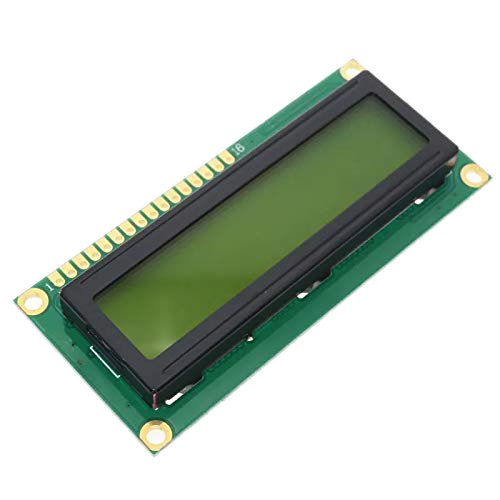

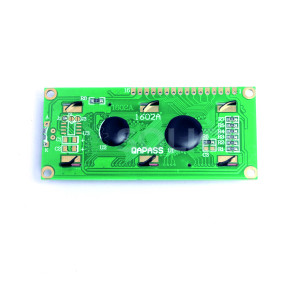

LCD1602 Yellow/Green Backlight


  • Provides a user-friendly interface that allows users to go through the menu, make selections etc.

  • It consists of a 1602 white character Yellow/green backlight LCD.

  • The keypad consists of 6 keys select, up, right, down, left and reset.

  • To save the digital IO pins, the keypad interface only uses one ADC channel.

  • The key value is read out through a 5 stage voltage divider.
