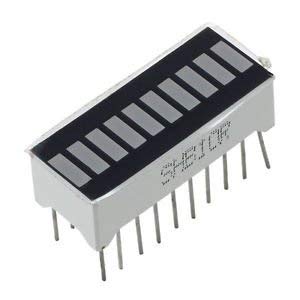

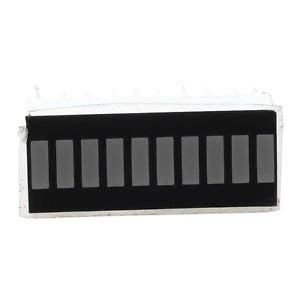

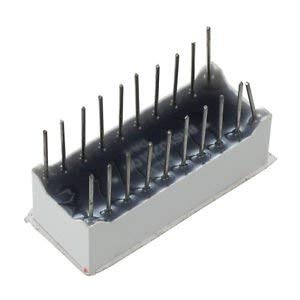

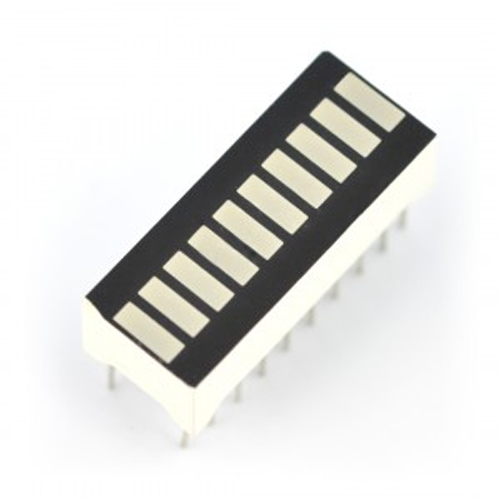

DSL10

10 Segment Line Bar Display


  • 10-segment LED display, the range of colors is 4 x red, 3 x green, 3 x blue.

  • It can be used for example as a temperature gauge or liquid level.

  • Display type: LED range

  • Mounting: THT

  • Working current: 20 mA

  • Wavelength of red: 570 nm

  • Wavelength of green: 632 nm

  • Wavelength of blue: 465 nm

  • Brightness of red: 35 mcd

  • Brightness of green: 35 mcd

  • Brightness of blue: 50 mcd
