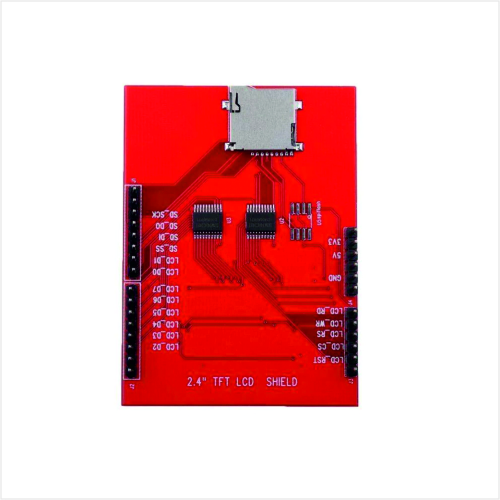

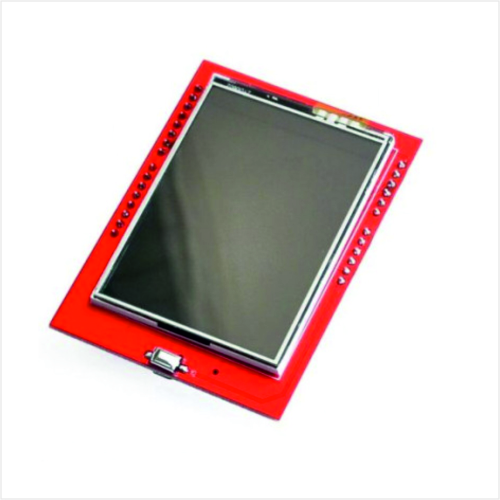

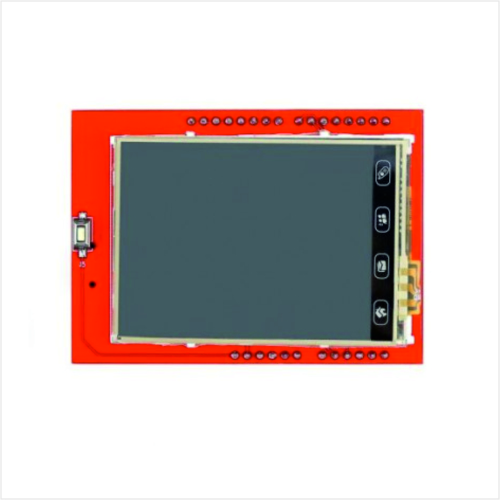

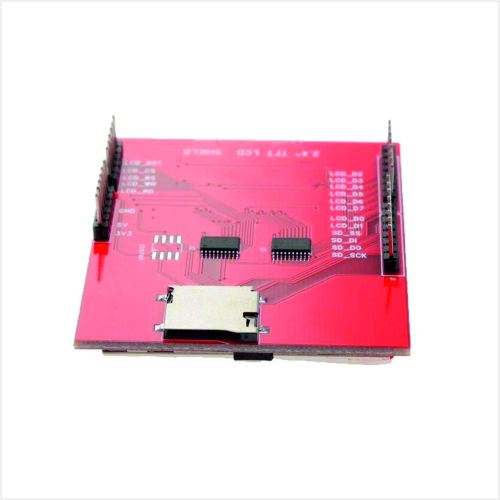

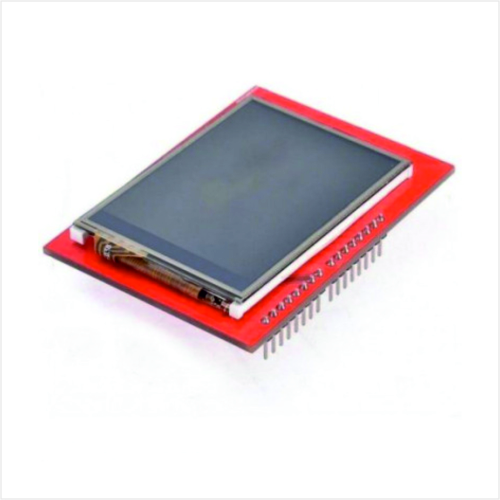

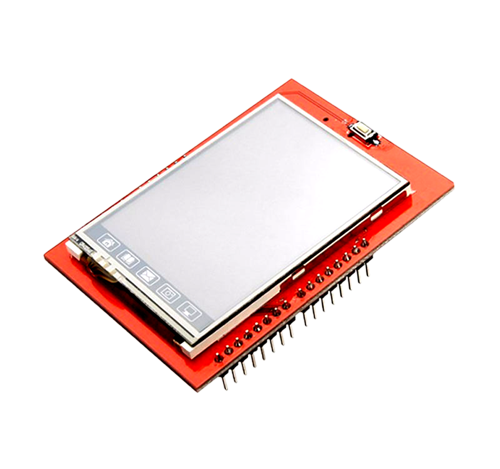

UD24C

2.4" Display for UNO


  • 2.4″ diagonal LCD TFT display

  • 240×320 resolution, 18-bit (262,000) color

  • 8 bit digital interface, plus 4 control lines

  • Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5.

  • Pin 12 is available if not using the microSD

  • 5V compatible! Use with 3.3V or 5V logic

  • Onboard 3.3V 300mA LDO regulator

  • 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control

  • 4-wire resistive touchscreen
