LOADS1

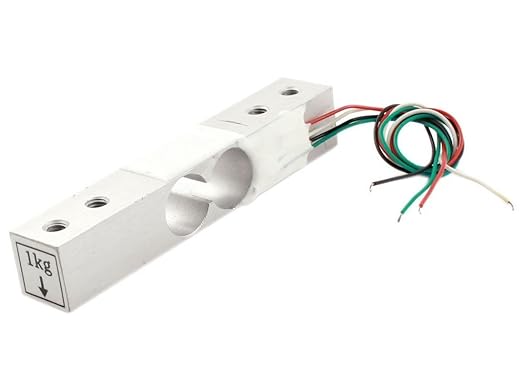

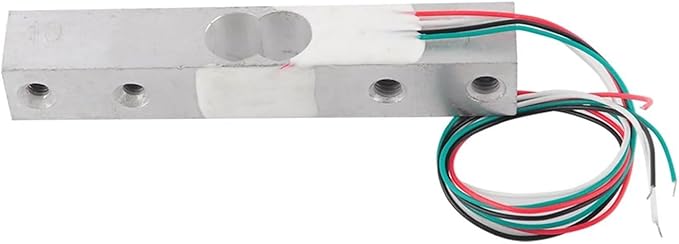

WEIGHING LOAD CELL SENSOR

• Capacity: 1KG


• Rated output(MV/V): 2.0±0.15


• Accuracy class: C2


• Maximum number of laod cell verification intervals(N max): 2000


• Minimum number of laod cell verification intervals(Vmin): EMax/5000


• Combined error(%RO): <±0.030


• Creep(%RO/30min): 0.03


• Temperature effect on sensitivity(%RO/°C): 0.0016


• Temperature effect on zero(%RO/°C): 0.003


• Zero balance(%RO): 1.0


• Input resistance(O): 402±6


• Output resistance(O): 350±3


• Insulation resistance(MO<50V>): 5000


• Recommended excitation voltage(V): 10~15


• Compensated temperature range(°C): -10~+40


• Operating temperature range(°C): -35~+80


• Safe overload(%RO): 150


• Ultimate overload(%RO): 200


• Load cell material: Aluminium


• Connecting cable: ø4.2x350mm
