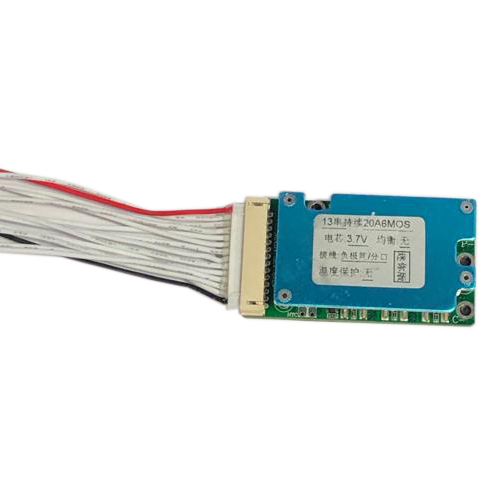

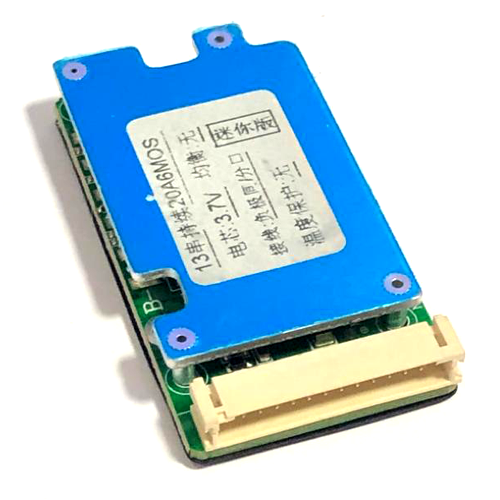

13S 48V 20A PCB PCM Li-ion Lithium Cell Battery BMS Protection Board + Cabel


  • 13S 48V 20A Li-ion Battery Protection Board

  • Instantaneous Diacharge Current: 100A

  • Charging Voltage: 54.6V

  • Charging Current: 20A(Max.)

  • Over-charge Detect: 4.28±0.05V

  • Protect Delay: 100ms

  • Over-charge Release: 4.08±0.05V

  • Over-discharge: 2.55±0.08V

  • Release Voltage: 2.9±0.1V

  • Detect Voltage: 150mV

  • Current Detect: 120±5A

  • Resistance: ≤15mΩ

  • Working Current: ≤50uA

  • Sleep Current(when Over-discharge): ≤10uA

  • Working Temperature: -30~80?

  • Over charge protection, over discharge protection function, short circuit protection function, over current protection function,no with band balance.
