BOANP

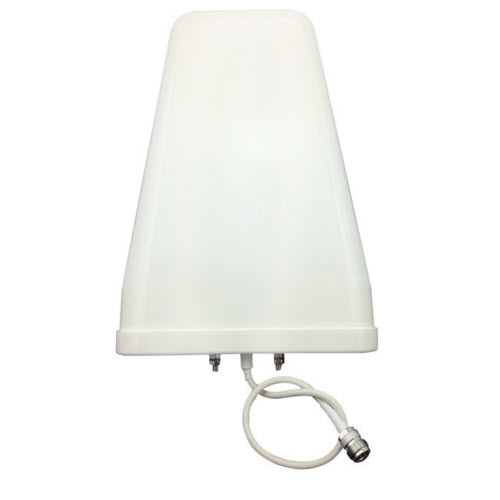

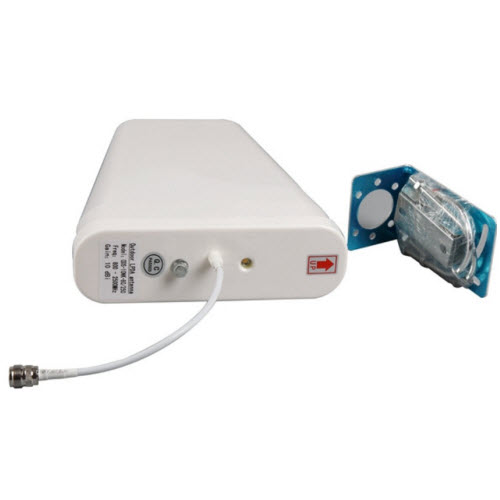

Outdoor Antenna 11dBi
- Directional LPDA Antenna for Mobile Signal Repeaters
- Gain-11dBi
- Frequency Range: 698-960/1710-2700 Mhz
- Suitable for 2G/3G/4G LTE
- Good standing wave performance,high gain,broad band,big F/B ratio,strong structure
- Waterproof with Anticorrosion material for long life
- Small size and easy installation
- Waterproof with Anticorrosion material for long life
Details |
|
| Frequency Range_MHz | 698-960/1710-2700 |
| Maximum Power -W | 50 |
| Polarization | Vertical |
| Input Impedance | 50 |
| VSWR | <1.5 |
| F/B Ratio | 18 |
| Vertical Bear width _° | 50/40 |
| Horizontal Bear width_° | 65/50 |
| Gain-dBi | 11 |
| Bandwidth-MHz | 262/990 |
| Cable&Connector | RG11, N Female or customized |
Mechanical Specifications |
|
| Dimensions-mm | 445×265×65 |
| Weight-kg | 0.8 |
