COLM3

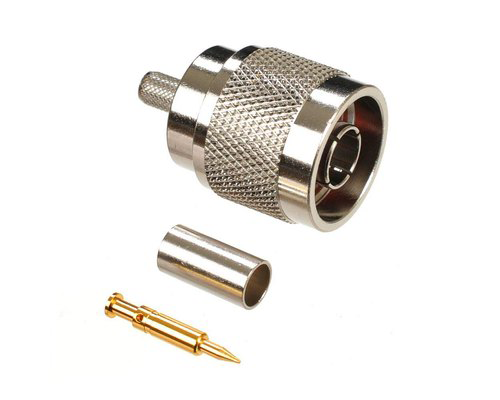

LMR 300 Connector
- The connector is made with nickel-plated brass and a gold-plated pin for a reliable signal every time.
- Use to connect and create your own custom length of (coaxial) cable with this N-Male connector.
- It also allows you to connect a wide range of RF devices that utilize the N connectors for Antenna.
- Characteristic Impedance: 50 ohm
- Frequency Range: DC-4 GHz
- VSWR: ≤1.15@DC-3 GHz
- Dielectric Withstanding Voltage: ≥1000V RMS,50Hz,at sea level
- Dielectric Resistance: ≥5000MΩ
- Contact Resistance Center Contact: ≤1mΩ
- Outer Contact: ≤0.25mΩ Durability Mating Cycles: ≥500
- Body Material: Brass
- Insulator: PTFE(Teflon)
- Center conductor: Phosphor Copper
- Operating Temperature Range: -40 to 85
