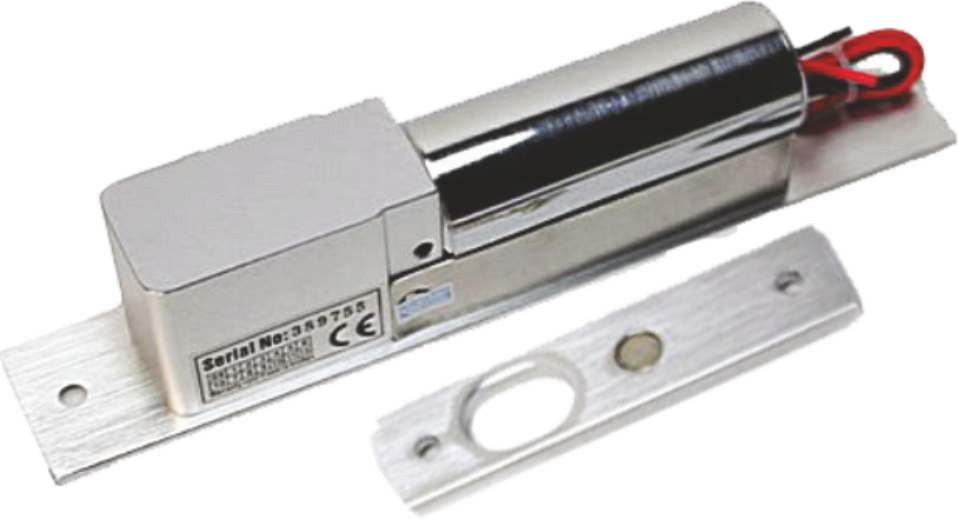

AC200
Fail Safe Electric Bolt Lock
- Fail Safe Electric Bolt Lock
- Suitable for metal, grlass or wooden door
- Low Temperature, safe & Durable
- Fail Safe: Locked when energized (NC)
- Low Power Consumption
- MOV Provides Reverse Current Protection
- Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt
- Auto-relock if no Action within 5 sec
- Long Life with 500000 Operations
- The Photoelectricity Control Technology, prevent the machanical defect
Specification |
|
| Fail Safe: | Lock When energized |
| Face place material: | High Aluminum, Carrulous Line Finished |
| Operating Humidity: | 0~90%(non-condensing) |
| Operating temp: | -10~+25?(14-131F) |
| Induction Distance: | 8mm |
| Surface Temp: | <20*c |
| Solenoid: | Continuous duty |
| Holding force: | 1000kg |
| Current: | Start: 0.9A, Standby: 0.15A |
| Voltage: | DC12V |
| Lock pin: | 16mmDIA,stainless steel out throw16mm |
| Magnet bracket: | 90Lx24Wx3H(mm) |
| Blot out plate size: | 210Lx42Wx0.8H(mm) |
| Face plate size: | 200Lx34Wx3.4H(mm) |
| Lock body size: | 157.5Lx31Wx40H(mm) |
| Weight: | 0.7kg |
