ACML

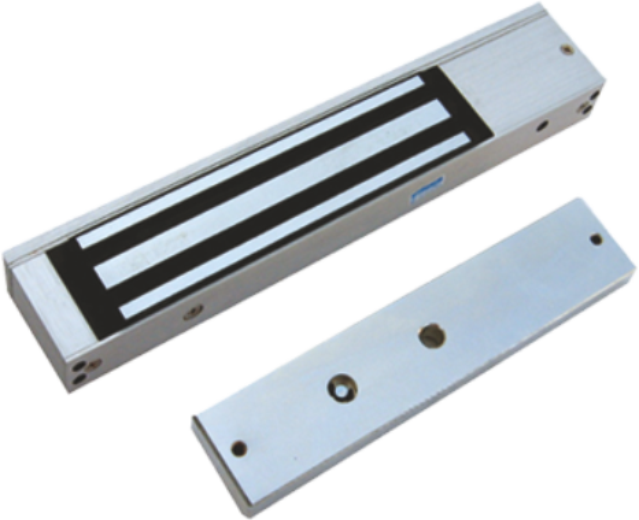

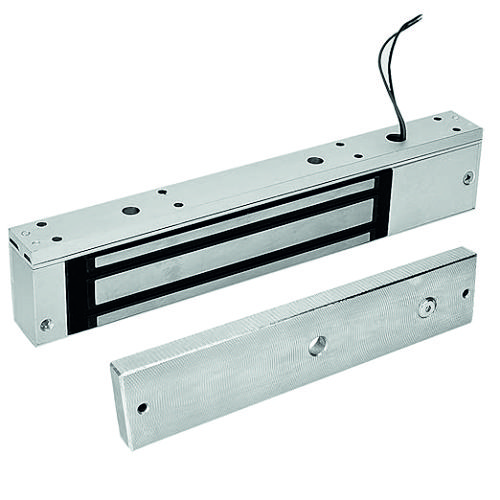

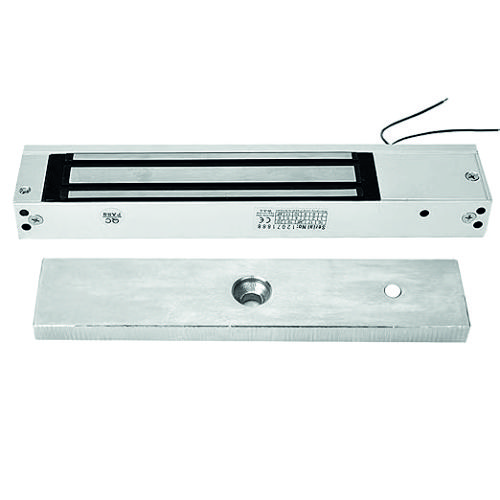

Electromagnetic Lock Single Door 280kg
- Electro Magnetic Lock for single door with holding force of 280Kg
- Anodized Aluminium housing for high strength
- Corrosion resistant
- Built-in reverse currant protection device
- Can be opened by push button, remote controller, etc
- Fit for wooden door, metal door, glass door, fireproof door, etc
- Operating Current: Dual Voltage option 12V 0.5 A or 24V 0.25 A
- Dual Insulative Housing
Specification for ACML |
|

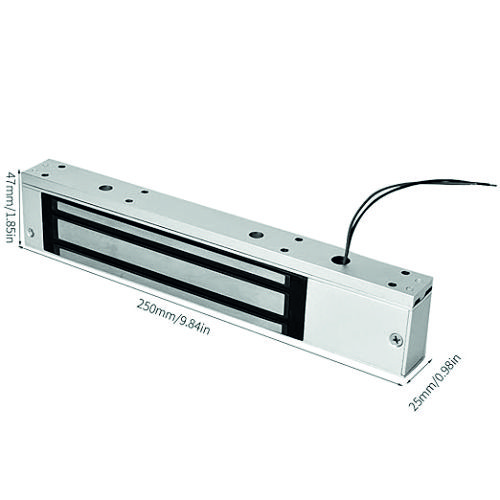

| Size | 250Lx42Wx25H(mm) |
| Armature Plate Finish | Zinc |
| Lock Finish | Zinc |
| Cover Finish | Anodized aluminum |
| Humidity | 0~90%(non-condensing) |
| Operating Temp | -10~+55*C(14-131F) |
| Surface Temp | <+20? |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Signal | Lock status detection signal output |
| Current | 12V/500mA 24V/250mA |
| Input Voltage | 12/24VDC+10% |
| Holding Force | 280kg(600Lbs) |
| Armature Plate Dimension | 175Lx36Wx12H(mm) |
| Weight | 2KG |
