NEO6M

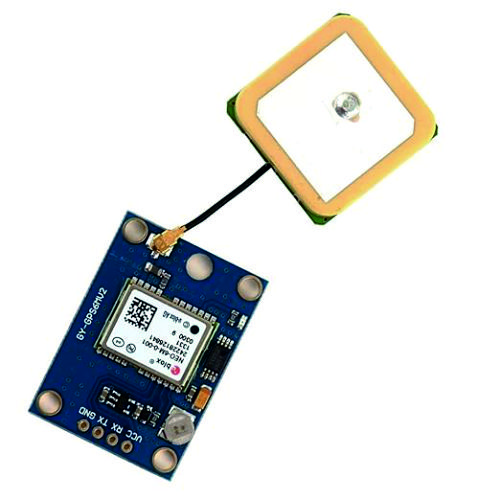

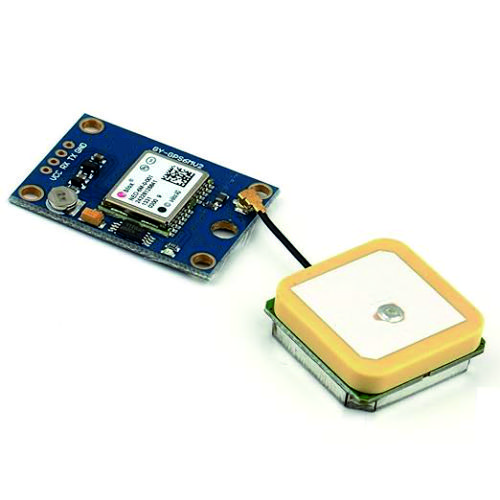

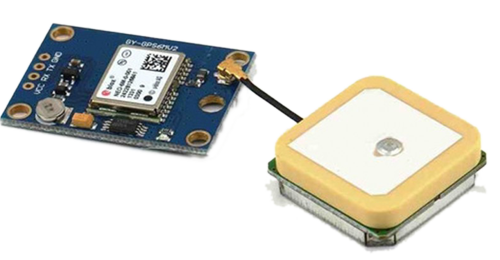

UBLOX NEO-6M with EEPROM with Antenna


  • 5Hz position update rate

  • Operating temperature range: -40 TO 85°CUART TTL socket

  • EEPROM to save configuration settings

  • Rechargeable battery for Backup

  • The cold start time of 38 s and Hot start time of 1 s

  • Supply voltage: 3.3 V

  • Configurable from 4800 Baud to 115200 Baud rates. (default 9600)

  • SuperSense ® Indoor GPS: -162 dBm tracking sensitivity

  • Support SBAS (WAAS, EGNOS, MSAS, GAGAN)

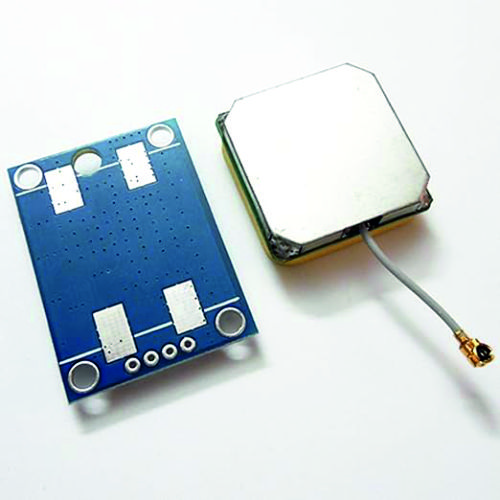

  • Separated 18X18mm GPS antenna

  • Global positioning System (GPS) Sensors

  • GPS Sensors are receivers with antennas that use a satellite-based navigation system with a network of 24 satellites in orbit around the earth to provide position, velocity, and timing information.
