RE122

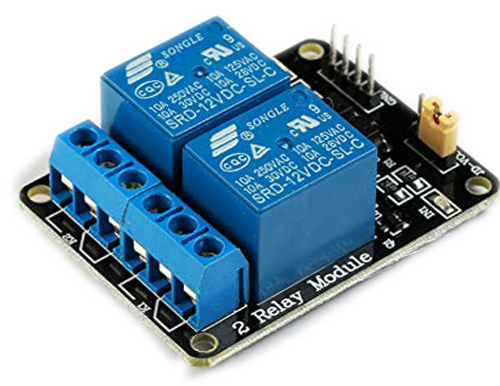

2 Channel Relay Module with light coupling 12V
- Operating Voltage: 12V DC
- Two separate LEDs for On/Off indication of the Relay
- Triggering input voltage 3.3V – 5V 4)
- Back EMF protection
- Equipped with high-current relay 10A@250VAC / 10A@30VDC
- It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
- High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
- Freewheeling diode to protect your microcontroller
- Input Signal Pin connected to Burg stick for easy accessibility
- Mounting holes provided
