PB16R

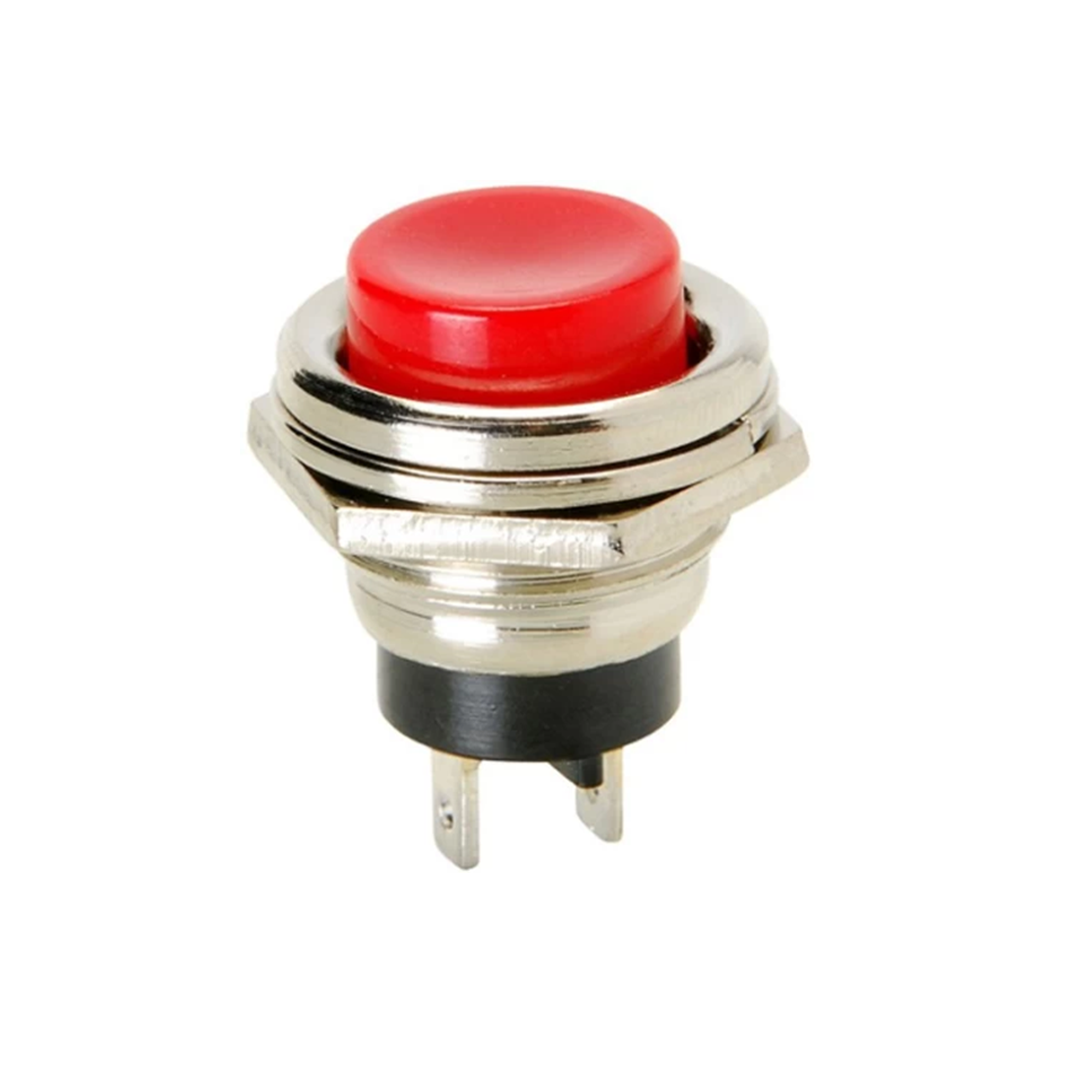

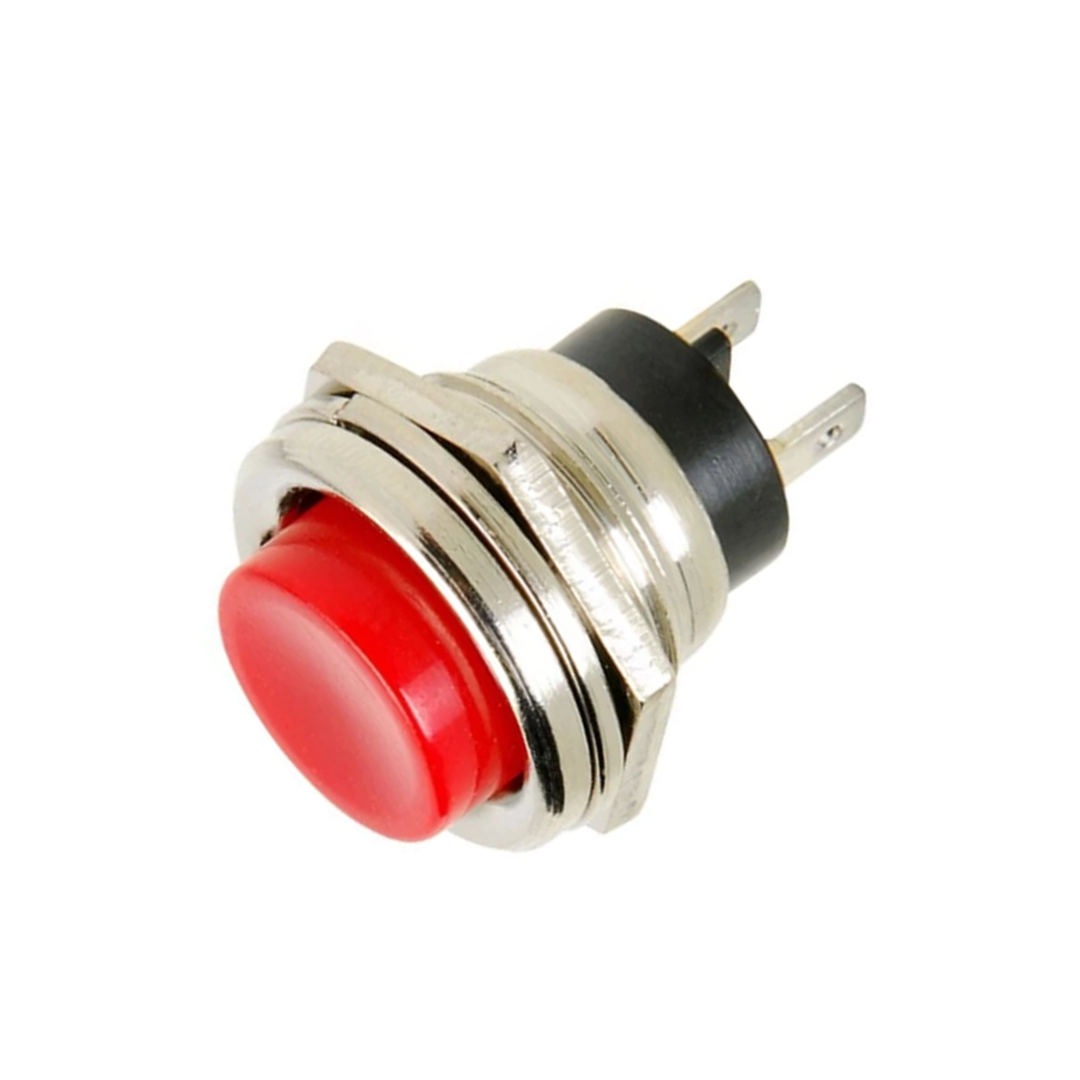

PUSH BUTTON 16MM RED BUTTON PUS TO ON


  • Curent Rating: 3A 250VAC

  • Contact Resistance: 100mΩ max

  • Electrical Life: ≥ 10,000 Cycles

  • Function: OFF-(ON)

  • Dielectric strength: 500VAC 1 minute

  • Operating Temperature: -25?~+85?

  • Insulation Resistance: 100mΩ min (500VDC)

  • Material: Plastic and Metal

  • Contacts configuration: SPST

  • Switch method: Pushbutton
