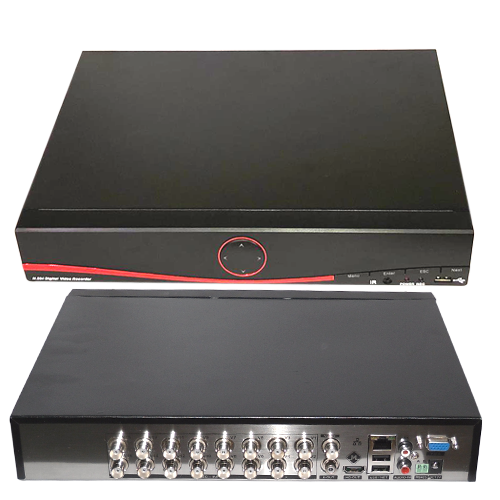

AHD5116
AHD DVR 16 Channel 5in1 1080N
- AHD DVR 16 Channle Video BNC+ 2 Channel Audio RCA input
- 5 in 1; Supports AHD/TVI/CVI/CVBS/IP
- Video Output: 16*1080N; 8*1080N;16*960H
- Codec:H.264
- External Interface: 1 Ch VGA, 1Ch HDMI, 1 Ch RCA, 1*RS485, 2 USB ports 2.0, 1HDD SATA port (Max 8TB/slot), RJ45 10M/100M
- supports web, CMS and mobile (iOS, Android) monitoring
- Support UTC, Control signal & video transmit through one single coaxial
System |
|
| Main processor | Hi3521A |
Interface |
|
| Operating interface | Support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4/8/9/16 |
| Codec | H.264 |
| Monitor quality | VGA HDMI HD |
| Preview ability | 16*1080N |
| Encode ability | 16*1080N@12fps/16*960H/8*1080N |
| Decode ability | 16*1080N@12fps/8*960H/8*1080N |
Video |
|
| Multi-mode input | analog?16*1080N 8*1080N;16*960H; hybrid 8*1080N analog +8*960P network), network 8*1080P+8*960P; 4*3M ;4*5M |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
Audio |
|
| Audio compression | G.711A |
| Intercom | Support |
Record & playback |
|
| Record mode | manual>alarm>motion detection>timing |
| Local Playback | 16ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel |
Storage & backup |
|
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
External Interface |
|
| Video input | 16ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Loop Vout | N/A |
| Audio input | 2?Can be extended to 6ch RCA |
| Audio output | 1ch RCA |
| Alarm input | 0 Can be extended to 4ch |
| Alarm output | 0 Can be extended to 1ch |
| Network interface | RJ45 10M/100M |
| PTZ control | 1*RS485, Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 2*SATA ports (Max 8TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
General |
|
| Power Supply | 12V/4A |
| Power consumption | <15W (without HDD) |
| Working environment | y |
| Dimension | 235mm*90mm |
| Weight | 279g |
